Multi-speed hydraulic transmission for crops harvesters
Aircraft Tractor Transmission
Product Feature:
(1) The box is highly rigid, with a compact structure and adopts straight-tooth gear engagement. The transmission is stable, with low transmission noise, reliable connection, and easy installation.
(2) It adopts two-speed transmission, hydraulic motor power input, gear shifting through engagement sleeve, and hydraulic control gear shifting, which reduces the driver's workload.
(3) The transmission system has strong bearing capacity, simple operation, safety, reliability, low cost, and easy operation.

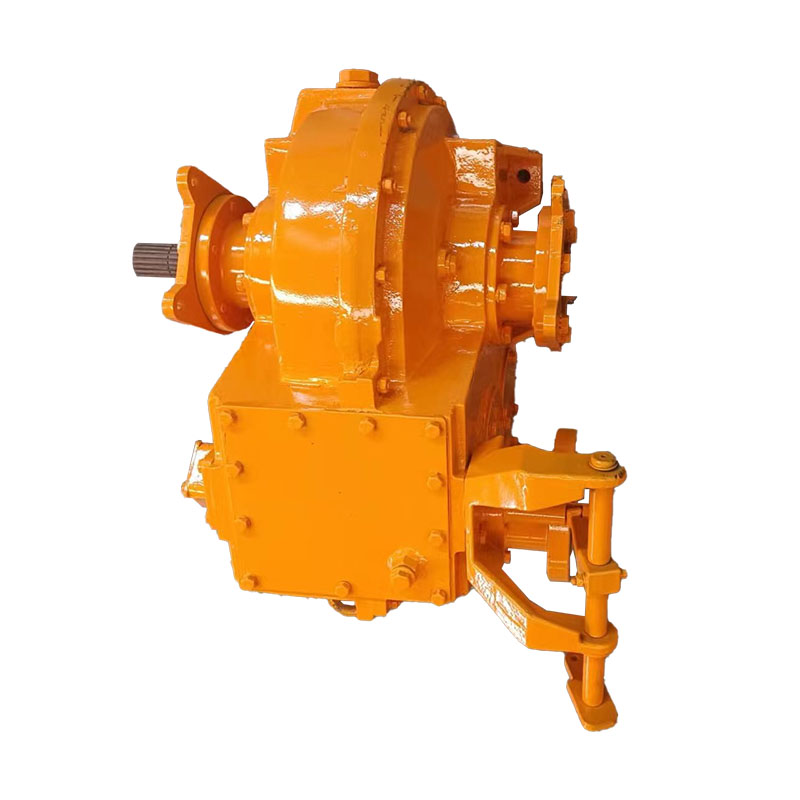

FL3000 Forage Harvester Transmission
Product Introduction:
Matching machine: FL3000 forage harvester.
Technical parameters: I 4.055; II 13.95. End drive ratio: 4.33 (52/12).
Weight: main gearbox: 157.5kg per unit, side reduction gearbox: 92.5kg per unit.
Installation wheelbase: customizable based on user requirements.
Product Feature:
(1) The gearbox has strong rigidity and a compact structure. It adopts straight-tooth gear engagement, which results in a smooth transmission with low noise. It is easy to install and the connection is reliable.
(2) It uses a two-speed variable hydraulic motor power input with an adjustable brake caliper hydraulic brake.
(3) The transmission system has a strong load-bearing capacity, is easy to operate, safe, reliable, and has low operating costs.
Hydraulic 2-speed Transmission
Product Introduction:
Model Matching: Hydraulic 2-speed transmission harvester
Technical Parameters: I 4.11; II 10.563; Final drive gear ratio:6.09
Weight: main box:110kg; wheel reducer:92.5kg
Wheelbase of the vehicle installation: can be customized according to customer requirements.
Product Feature:
(1) The box body is rigid, compact in structure, adopts straight-tooth gear meshing, has smooth transmission, low transmission noise, reliable connection, and easy installation.
(2) It adopts two-speed transmission, hydraulic motor power input, and adjustable brake caliper hydraulic brake.
(3) The transmission system has strong bearing capacity, simple operation, safety, reliability, and low cost of operation.
(4) The installation edges of the brake calipers and brake discs are reduced, making the overall layout more reasonable and compact.
Hydraulic 4-speed Transmission
Product Introduction:
Model Matching: Corn harvester
Technical Parameters: I 29.29; II 7.19; III:14.608; Final drive gear ratio: 7.72 (85/11p)
Weight: main box:200kg; wheel reducer:197kg; 260hp engine;
Wheelbase of the vehicle installation: can be customized according to customer requirements.
Product Feature:
The box has strong rigidity and a compact structure, with four forward gears. The design eliminates the clutch and torque converter, which are expensive and prone to failure. It adopts a stepless transmission, cross-axis differential, and a reliable and durable clutch structure, making it an ideal matching product for corn harvesters. The transmission is smooth, with low noise and strong load-bearing capacity, reliable connection, and easy installation. It adopts a stepless transmission structure, thickens one axle, and uses helical gears. The reinforced shell increases the strength and reliability of the product.
Hydraulic 4WD Transmission
Product Introduction:
Model Matching: Corn harvester
Technical Parameters: I 22.64; II9.403 , III3.412; transfer box:0.267
Weight: 140kg/unit; 180 hp engine, fully loaded weight not exceeding 8.5 tons.
Vehicle installation wheelbase: customizable according to user requirements.
Product Feature:
The gearbox has strong rigidity and a compact structure, with three forward gears. The high-cost clutch and torque amplifier, which are prone to failure, have been eliminated. The gearbox adopts stepless speed regulation, cross-axis differential, and a reliable and durable clutch structure. It is an ideal matching product for corn harvesters, with smooth transmission, low transmission noise, strong carrying capacity, reliable connection, and easy installation. The gearbox adopts a stepless speed regulation structure and a thickened shaft, and the reinforced housing increases the strength and improves performance.
